产品详细

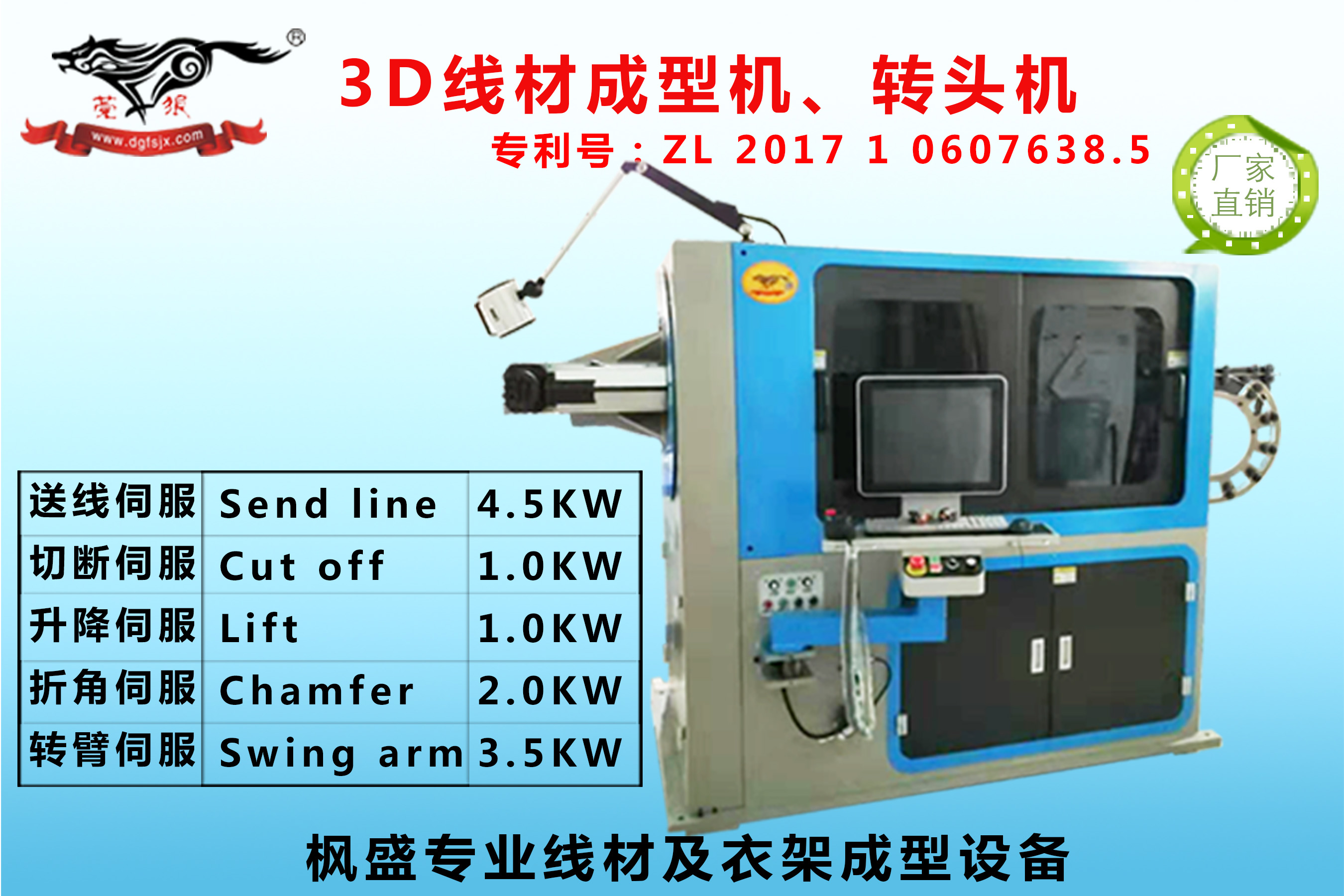

名称: 枫盛转头式3D线材成型机FS-DG203-08

Technical parameters of Fengsheng wire rod forming

 machine fs-dg203-08



专利号Patent number201710607638.5



品牌brand: 莞狼/枫盛(FS

转头机的特点是适合做大线经、杆件类金属线材的产品

The characteristics of the turning head machine are suitable for making large wire,   rod like metal wire products.



简述Brief description生产线经3.0-8.0mmthe production line passes 3.0-8.0mm.

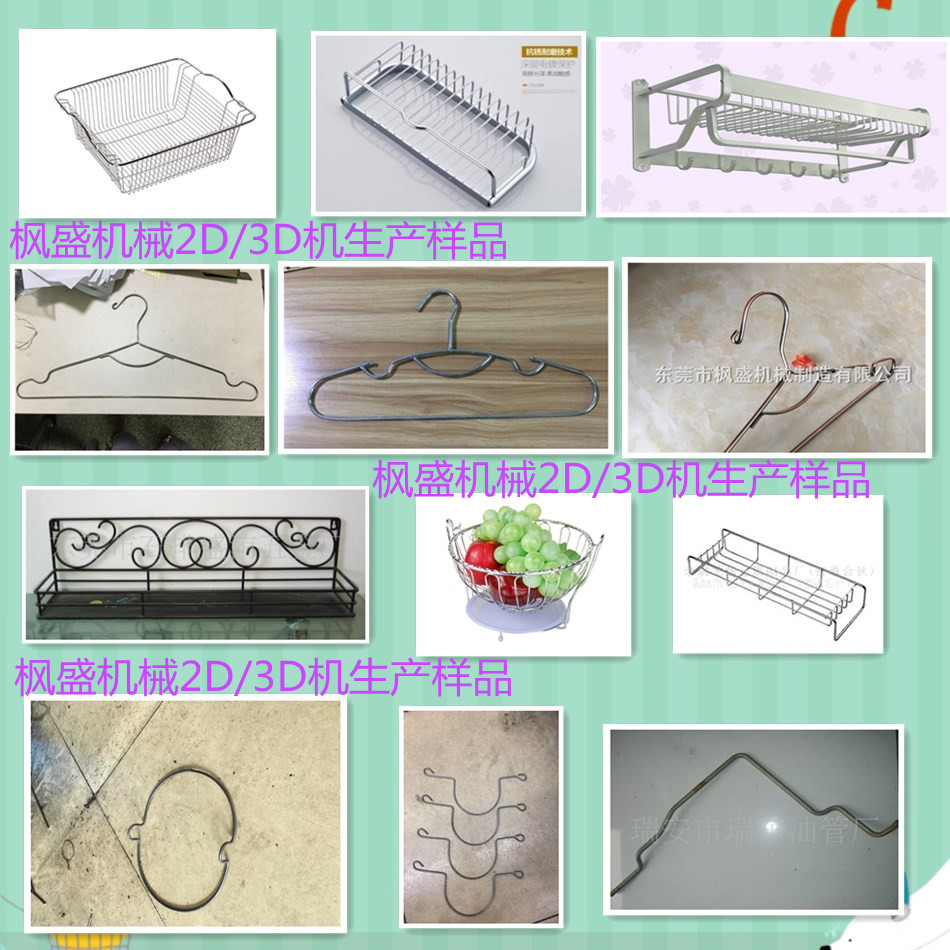

适用于:汽车连接杆、座椅骨架等零部件和工艺品、卫厨配件、超市货架,家具座椅,园林工具等3-8mm线径配件折弯成型。

Applicable to: automobile connecting rod, seat frame and other parts and crafts

Kitchen accessories, supermarket shelves, furniture seats, garden tools, etc. 3-8mm

Wire diameter fittings are bent and formed.

枫盛转头线材成型机FS-DG203-08技术参数

Technical parameters of Fengsheng wire rod forming machine fs-dg203-08

序号

类型type

详细参数Detailed parameters

1

设备型号Equipment type

FS-DG203-08

2

加工线经规格Machining diameter

Φ3-Φ8mm(抗拉强度tensile strength500N,含Q195/Q235

3

控制轴数Number of control axes

5

4

转臂电机功率Arm motor

3.8KW

5

送线电机功率Wire feeder motor

4.5KW

6

外模转动电机功率Bending motor

2.3KW

7

升降电机功率Lifting motor

1.2KW

8

切刀电机功率Cutter motor

1.5KW

9

最大送线速度Maximum delivery speed

90mmin

10

送线精度Wire feeding accuracy

300mm±0.3

11

自动送线架最大承重Maximum load of automatic wire feeder

500Kg

12

自动送线架圆盘直径Diameter of disc of automatic wire feeder

φ1100mm

13

自动送线架电机功率Motor power of automatic wire feeder

1.5KW

14

主机电压Host voltage

AC380V(±20V

15

主机器重量Mainframe weight

2700kg

16

主机器尺寸Main machine size

3000mm X 2000mm X 1900mmL×W×H

17

自动送线架重量Weight of automatic wire feeder

300Kg


转头线材成型机FS-DG203-08特点及优势

Features and advantages of fs-dg203-08

1、        结构精巧,运行快速,采用先进成型技术,生产精度高,稳定性好;.

It has the advantages of exquisite structure, fast operation, advanced forming technology, high production precision and good stability;
   2
、本机工作头能实现360度旋转,实现线材不转,达到线材立体成型的设备,本机送线和转头既分离又结合,实现转头时不转线,使生产更稳定、精准;

The working head of this machine can realize 360 degree rotation, realize the non rotation of wire rod, and achieve the three-dimensional forming of wire rod, The wire feeding and turning head of the machine are separated and combined to realize no turning of the wire when turning the head, so as to make the production more stable and accurate;
  3、可以实现5轴同步运动,电脑开机、关机速度快、操作简单方便。电脑界面可以边生产边调速边改程序;

It can realize 5-axis synchronous movement, and the computer can be turned on and off quickly, and the operation is simple and convenient. The computer interface can adjust the speed while producing and change the program;
  4、轴承、齿轮等重要零部件采用高精度细磨的进口配件,设备运行平稳、可靠、噪音低、精度更高,可以做2.0-8.0 mm 线径范围内的线材成型产品,误差降到±0.3 mm

Imported accessories with high precision and fine grinding are used for important parts such as bearings and gears. The equipment runs stably, reliably, with low noise and higher precision. It can be used for wire forming products within the wire diameter range of 2.0-8.0mm, with the error reduced to ±0.3mm;

5、伺服电机采用进口高速电机,生产速度高于国内同类产品30%以上;

Servo motor adopts imported high-speed motor, and its production speed is more than 30% higher than that of domestic similar products;
  6、本机可实现边生产边调速边改程序,操作调试方便,最快速、最慢速折角,角度无变化;This machine can adjust the speed and change the program at the same time of production. It is convenient for operation and debugging. It has the fastest and slowest angle bending and no change in angle;
  7、可连入互联网,通过手机实现远程控制,售后服务更方便;

It can connect to the Internet, realize remote control through mobile phone, and make after-sales service more convenient

8、本公司自行研发、生产、销售,有完善的售后服务体系:本公司的产品实现免费保修一年,本公司用户免费提供技术培训支持!享受终身维护和升级!广东省范围内24小时能内反馈和处理维修,省外48小时反馈和处理维修。

The company's own research and development, production, sales, a perfect after-sales service system: the company's products to achieve free warranty for one year, the company's users to provide free technical training support! Enjoy lifetime maintenance and upgrades! Guangdong Province can feedback and deal with the maintenance within 24 hours, and outside Guangdong Province can feedback and deal with the maintenance within 48 hours
